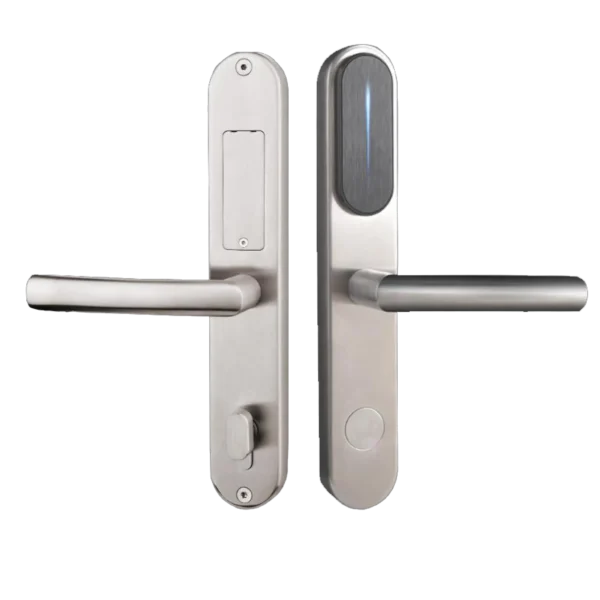

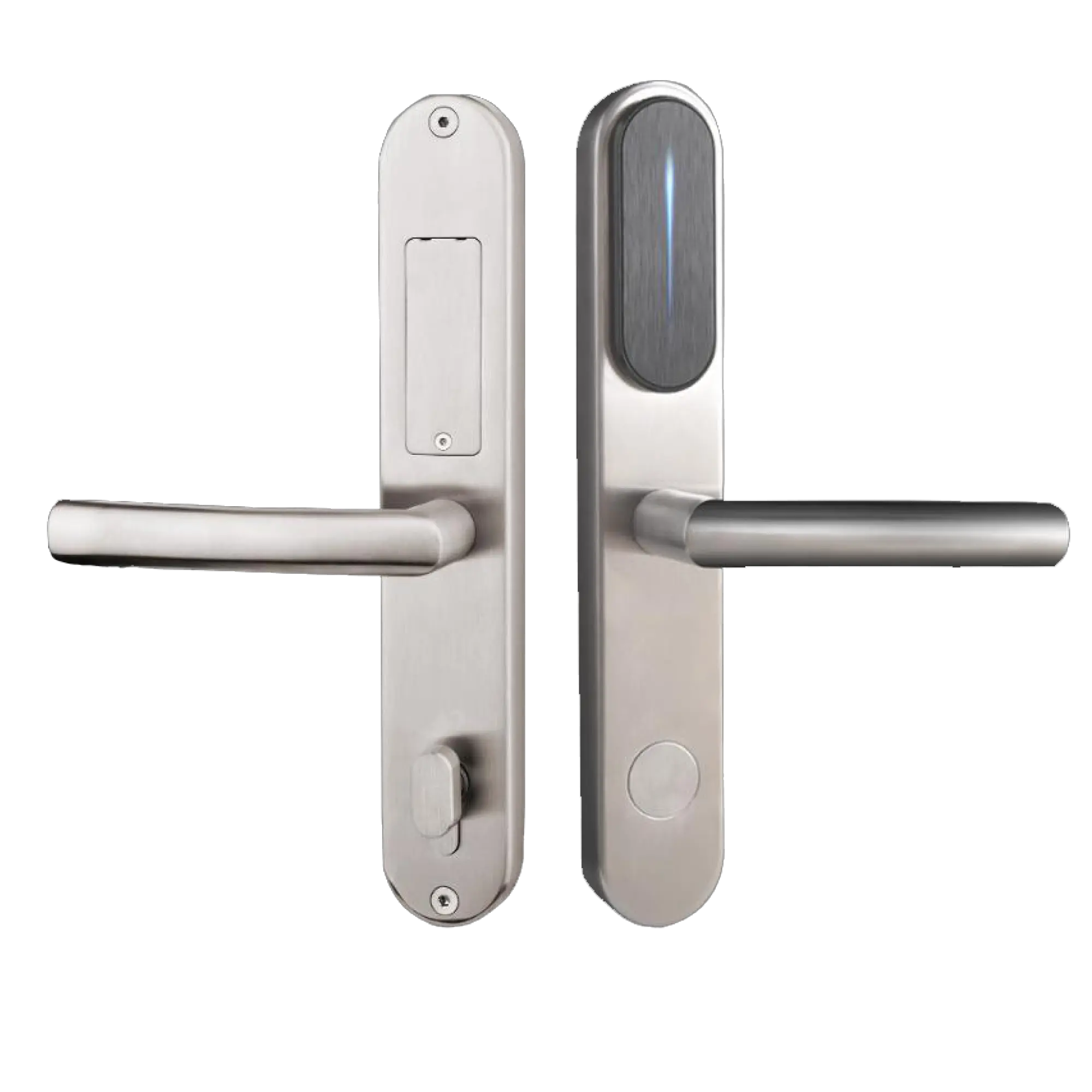

AYD 8002

Introducing the AYD 8002, a state-of-the-art device designed to enhance your daily productivity and streamline your tasks. Featuring a sleek, ergonomic design, this model boasts advanced technology that ensures optimal performance and reliability. With its user-friendly interface and customizable settings, the AYD 8002 adapts to your unique workflow, making it an essential tool for both professionals and enthusiasts alike. Elevate your efficiency and experience unparalleled convenience with the AYD 8002, your ultimate companion for success.



Technical Specifications

Applicable Card: Encrypted Mifare 1k
Material:: Stainless Steel 304
Opening ways: Card, Mechanical Key
Battery: 4 Standard AAA alkaline batteries, 18 months in normal state
Indication: Light, Sound
Deadbolt Indication: Blue and red light when touch key card
Unlocking record for trail: Yes
Low voltage warning: Yes
Passage mode for meeting room: Yes
Static consumption: 12uA
Dynamic consumption: 300mA
Humidity: 20%-80%
Working temperature: -100C-600C

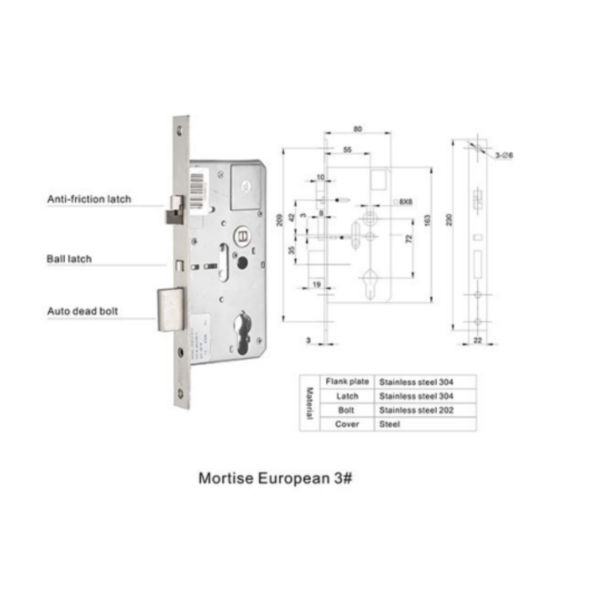

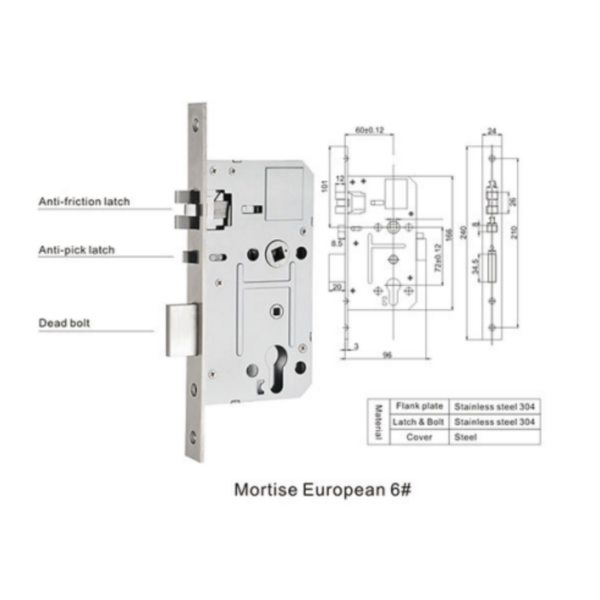

Optional Mortise: ANSI, Europe, 3#, 6#
  • 304 Stainless steel

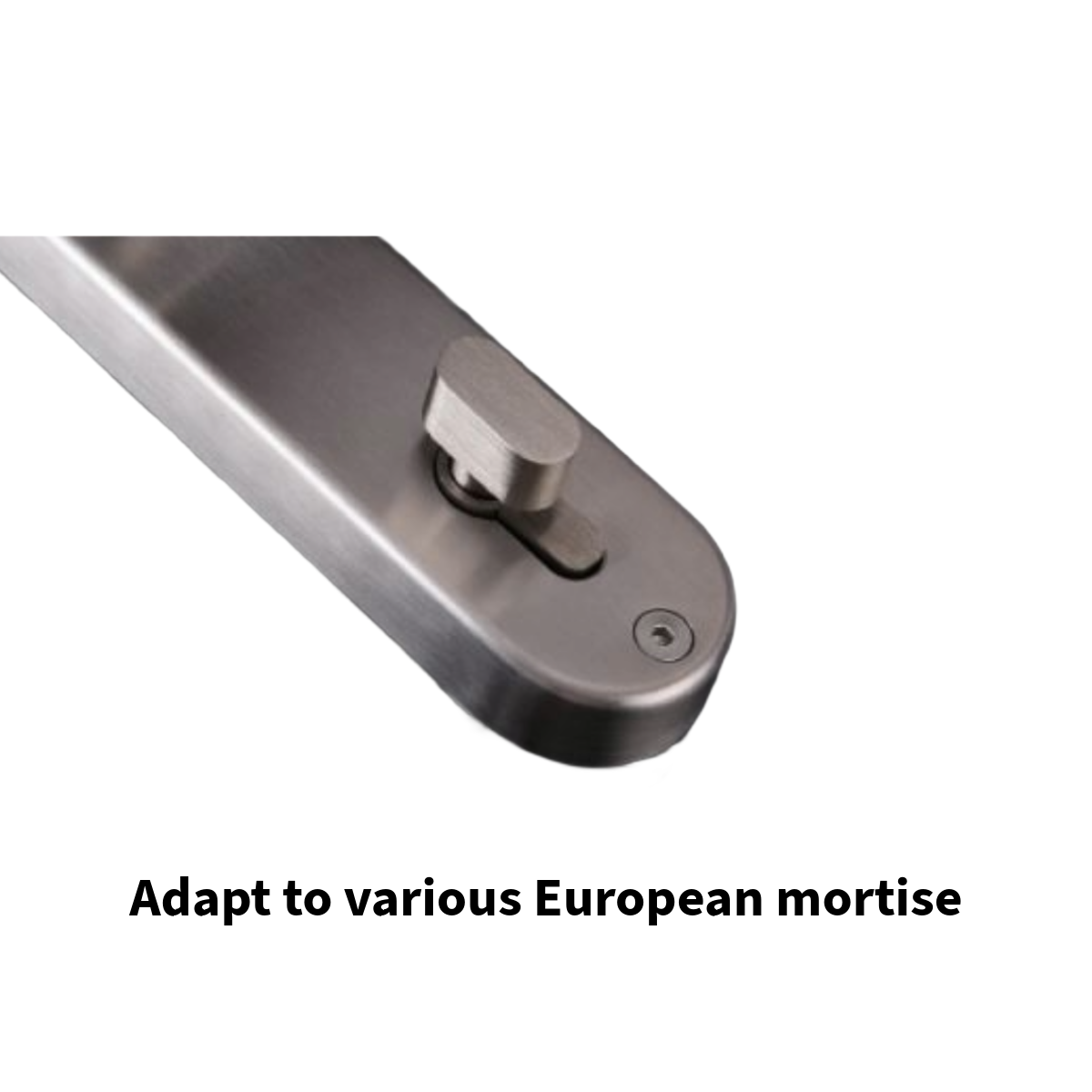

  • Applicable with European standard mortise or ANSI mortise
  • Anti-panic exit function
  • Axis distance from handle centre to cylinder can be 70mm, 72mm, 85mm

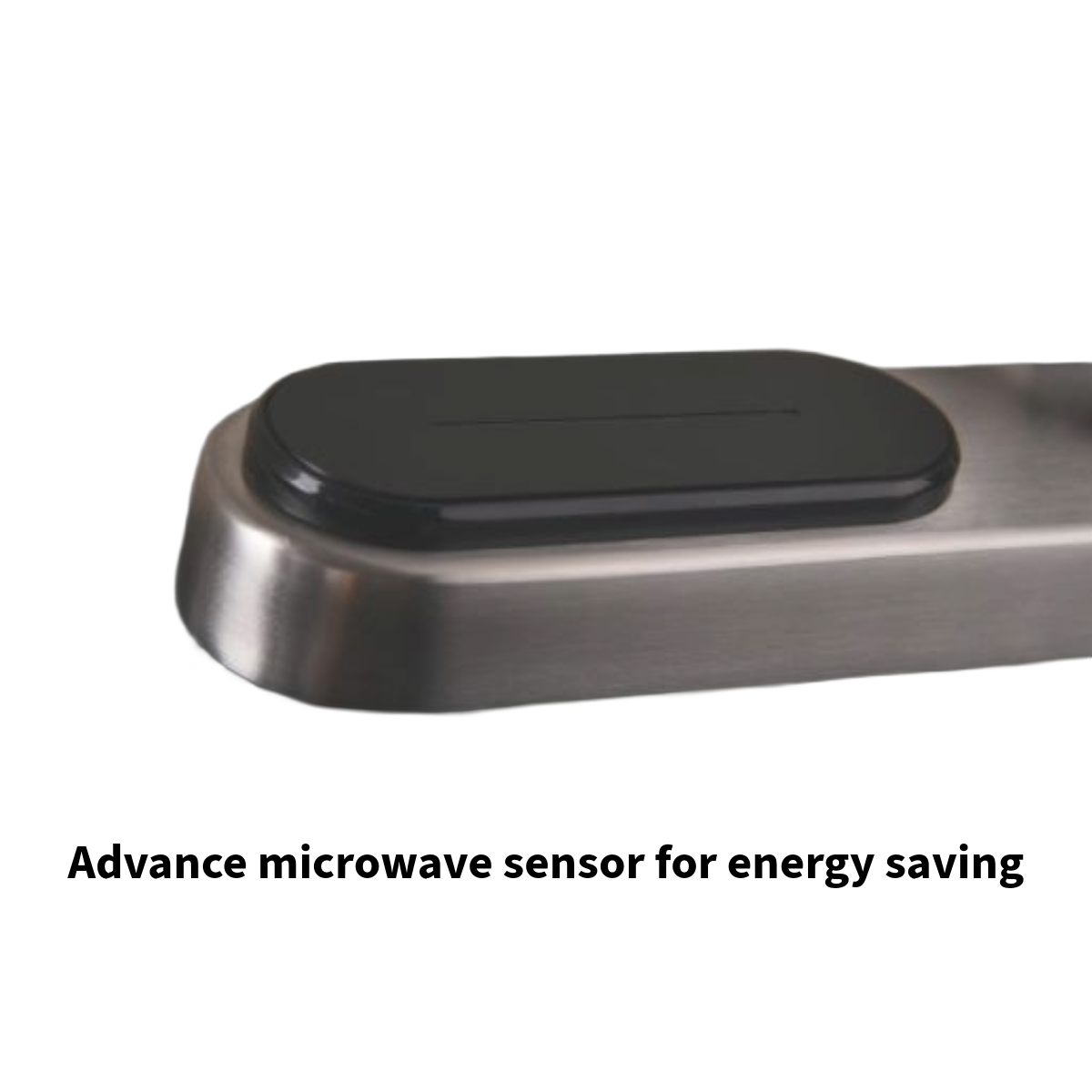

  • Detect card mode: Advanced Micro Wave
  • Hidden cylinder cover
  • Works with hotel lock management software
  • Suitable for Hote, Air bnb, and Residential Projects.
