AYD-8001

AYD-8001

SKU :

AYD-8001
Description

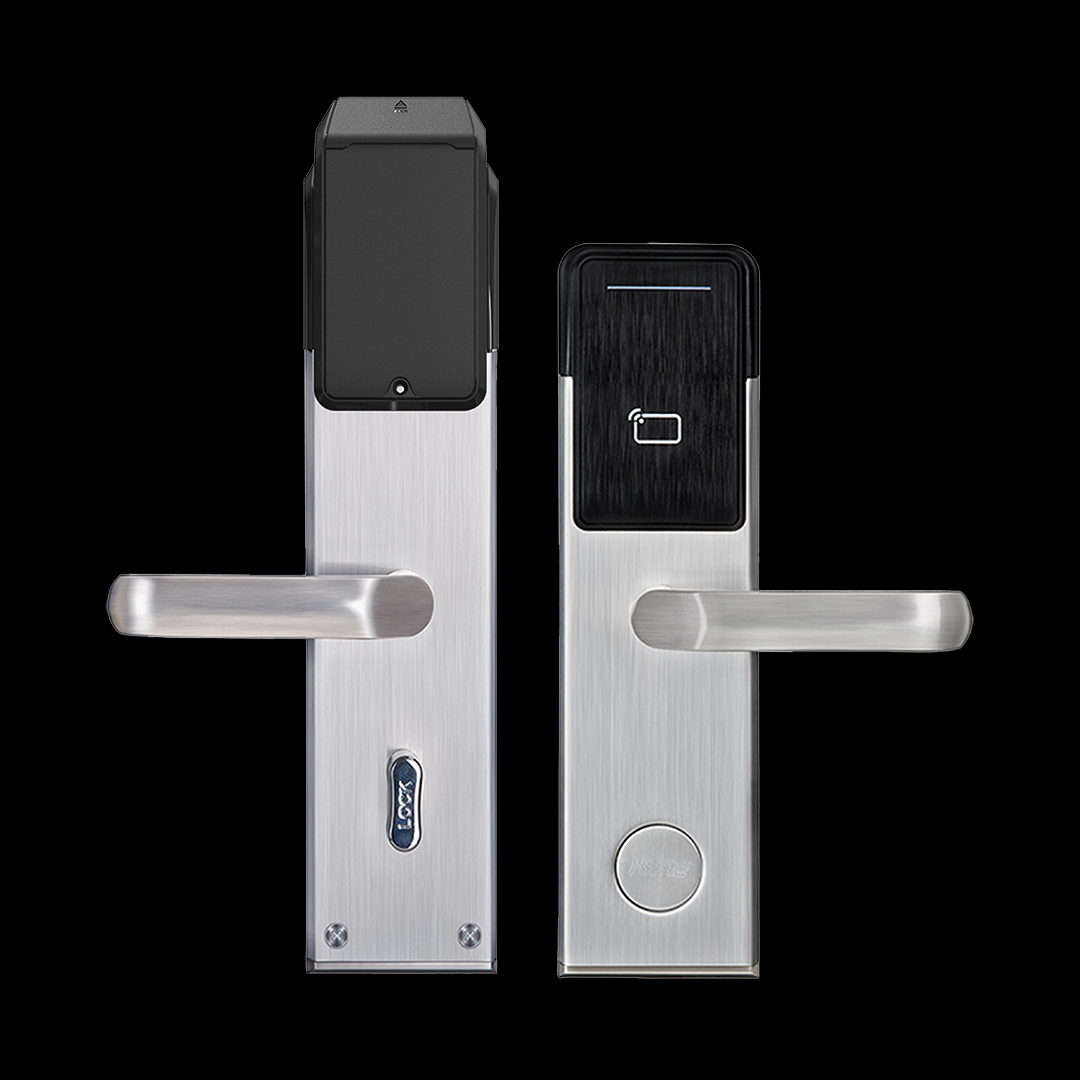

Designed for superior security, this lock features a 304 stainless steel coverplate reinforced with a robust 1.8mm steel plate. It includes an ANSI mortise and an anti-panic exit function for added safety. Utilizing advanced Micro Wave technology for card detection, this lock seamlessly integrates with hotel lock management software, making it ideal for hotels, Airbnb, and residential projects.

Specifications

Applicable Card: Encrypted Mifare 1
Material: Stainless Steel
Opening Ways: Card, Mechanical Key
Battery: 4 Standard AA alkaline batteries, 18 months in normal state
Indication: Light, Sound
Deadbolt Indication: Blue and red light when touch key card
Unlocking record for trail: Yes
Low voltage warning: Yes
Passage mode for meeting room: Yes
Static consumption: 12uA
Dynamic consumption: 300mA
Humidity: 20%-80%
Working temperature: -10°C-60°C
Mortise Type: ANSI

Features

304 Stainless steel coverplate reinforced by a 1.8mm thickness steel plate for added security
ANSI mortise
Anti-panic exit function
Detect card mode: Advanced Micro Wave
Works with hotel lock management software
Suitable for Hotel, Airbnb, and Residential Projects
