AYD-8002

AYD-8002

SKU :

AYD-8002
Description

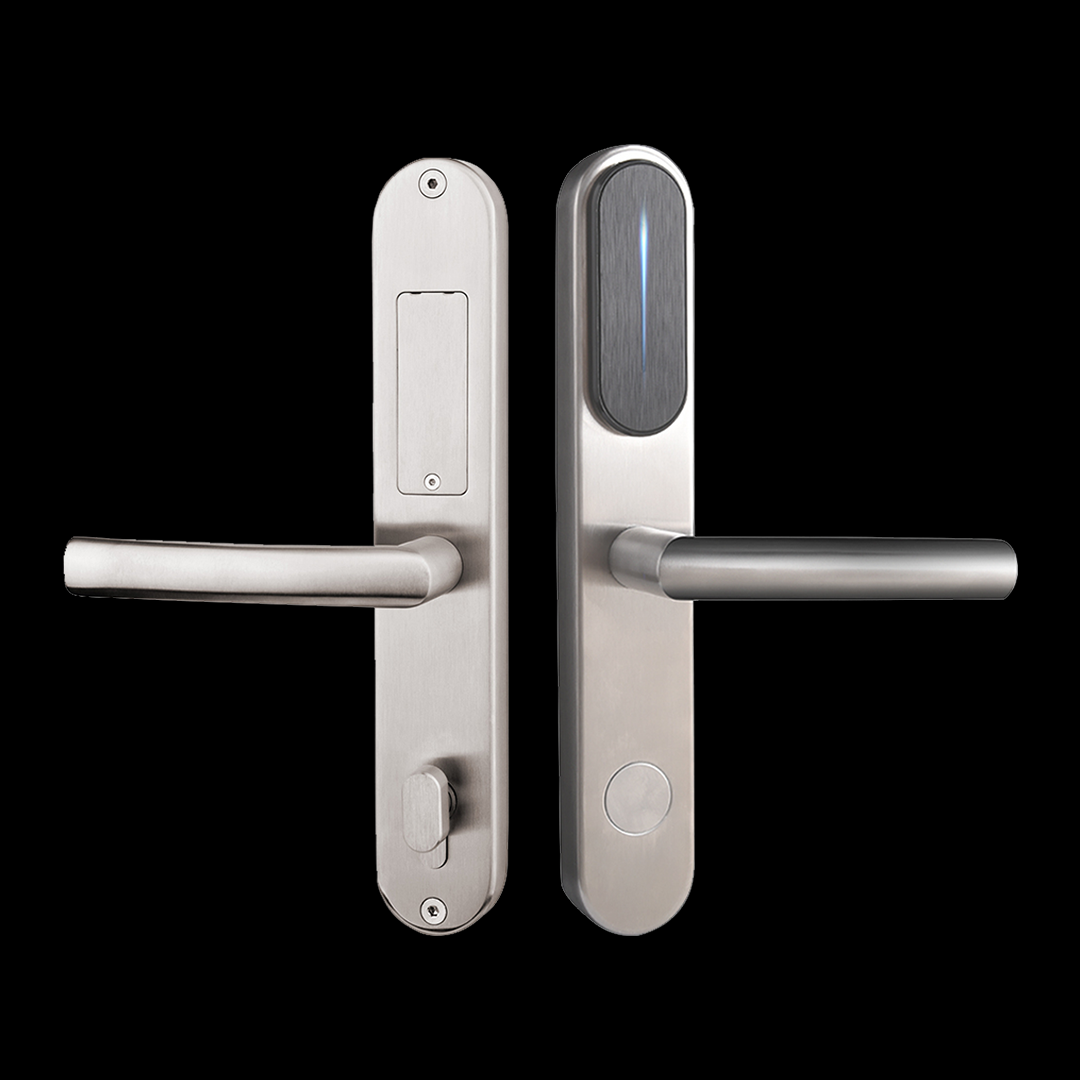

Enhance your security with our 304 stainless steel lock, compatible with European and ANSI mortise applications. It features an anti-panic exit function, customizable axis distances (70mm, 72mm, 85mm), and advanced Micro Wave detection. Designed for seamless integration with hotel lock management software, this sleek lock is ideal for hotels, Airbnb, and residential projects.

Specifications

Applicable Card: Encrypted Mifare 1
Material: Stainless Steel 304
Opening ways: Card, Mechanical Key
Battery: 4 Standard AAA alkaline batteries, 18 months in normal state
Indication: Light, Sound
Deadbolt Indication: Blue and red light when touch key card
Unlocking record for trail: Yes
Low voltage warning: Yes
Passage mode for meeting room: Yes
Static consumption: 12uA
Dynamic consumption: 300mA
Humidity: 20%-80%
Working temperature: -10°C-60°C
Optional Mortise: ANSI, Europe, 3#, 6#

Features

304 Stainless steel
Applicable with European standard mortise or ANSI mortise
Anti-panic exit function
Axis distance from handle centre to cylinder can be 70mm, 72mm, 85mm
Detect card mode: Advanced Micro Wave
Hidden cylinder cover
Works with hotel lock management software
Suitable for Hotel, Airbnb, and Residential Projects
